Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment
Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment

Large Image :  Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: PANDA MACHINERY
Certification: CE, ISO
Model Number: PD150

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Exporting Wooden Boxes
Delivery Time: 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Chocolate Production Line Type: Single-Head Chocolate Depositing Machine
Capacity: 1.5-3.0T/H Speed: 8-15Moulds/Min
Voltage: 380V/50Hz/3PHs Power: 28KW
Weight: 8500KG Size: 16000x1500x2000MM
High Light:

automatic chocolate moulding machine

,

chocolate manufacturing equipment

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment



1.Brief Introduction:

1.1 Chocolate Bar Production Line, confirms to the food GMP standard, is an advanced equipment for producing various shapes chocolate.

1.2 High-degree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost.

1.3 Chocolate Making Process:

>> Sugar Grinding

>> Cocoa Butter Melting

>> Conche

>> Storage Tank

>> Depositing and Cooling

>> Packing

1.4 Tips On The Chocolate Production Line:

1.4.1 The whole line equipped the international motor: ABB motor, Danfoss invertor, Mitsubishi PLC control, Servo motor, SS materials

1.4.2 Heating by steam or electric

1.4.3 standard chcolate and chocolate bar can be made

1.4.4 One/ two colors/center fillied chocolate can be made

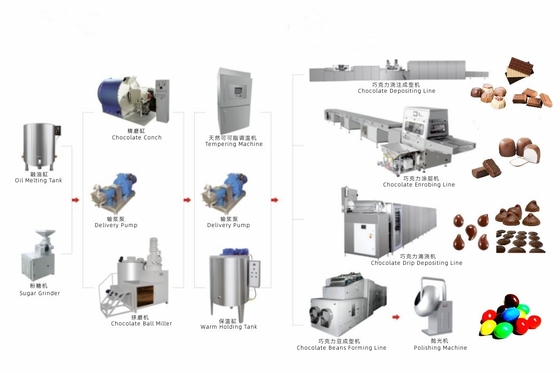

2.Chocolate Processing Flow Chart:

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 0

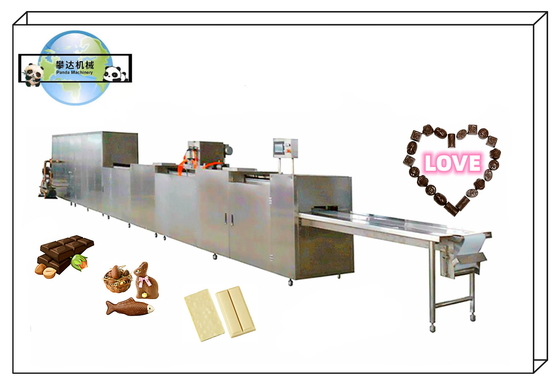

3.Chocolate Depositing Production Line:

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 1

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 2

4.Technical Parameters:

Model

PD150

(One Head)

PD150

(Two Heads)

PD510

( One Head)

PD510

(Two Heads)

Output

(Molds Pcs/Min)

6-15 6-15 6-15 6-15
Molds Number (Pcs) 280 330 280 300
Molds Size(MM) 330*200*30 330*200*30 510*200*30 510*200*30
Dimension(M) 16*1*1.6 16*1*1.6 16*2*1.6 16*2*1.6
Total Power(KW) 19 23 21 25
Total Weight(KG) 3500 4500 4000 5000

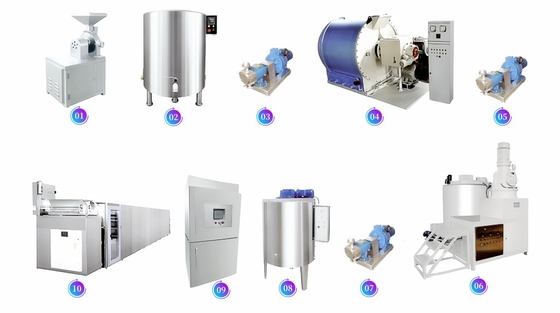

5.Main Components Of Chocolate Processing Line:
Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 3

6.Relative Machines Functions:

6.1 Sugar Grinding Machine: Grinding sugar to sugar powder
6.2 Cacao Butter Melting Tank: Jacket layers inside warm water, electric or steam heating, melting cacao butter for 30-60 minutes, temperature is around 55-60 degrees.
6.3 Conche: Adding grinded sugar powder, cacao powder, lecithin and cacao syrup and so on into the conche for grinding 14 hours.
6.4 Storage Tank: Stirring the conched syrup for 3-4 hours until the bubbles disappear.
6.5 Depositing and Cooling: Depositing the chocolate syrup into the molds and cooling(8 layers), warming molds, vibrating, and demoulding machine equipped, PLC control.
6.6 Packing Machine: Various packing machine available.

7.Main Chocolate Machines Fabrication Photos:

Sugar Grinding Machine

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 4

Chocolate Storage Tank

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 5

Chocolate Conch

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 6

Small Chocolate Depositor

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 7

Chocolate Tempering Machine

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 8

Chocolate Depositing Machine

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 9

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 10

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 11

Chocolate Cooling Tunnel

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 12

Chocolate Packing Machine

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 13

8.Chocolate and Moulds Samples:

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 14

Fully Automatic Chocolate Production Line, Chocolate Processing Making Line, Chocolate Manufacturing Plant Equipment 15
