Product Details:
Payment & Shipping Terms:
|
Product: | Chocolate Depositing Production Line | Type: | Single Head |
---|---|---|---|
Model: | PD150 | Material: | SS304 |
Gross Weight: | 11500KG | Size: | 19000 X 2000 X 2200MM |
High Light: | Double Heads Chocolate Pouring Machine,SS304 Chocolate Pouring Machine,23kw Chocolate Bar Production Line |
PD150 Single Head Chocolate Pouring Machine Chocolate Making Equipment Machinery Chocolate Depositing Machine Line Industrial Chocolate Processing Line Single Depositing Head Chocolate Machine
1.Brief Introduction:
1.1 Chocolate Bar Production Line, confirms to the food GMP standard, is an advanced equipment for producing various shapes chocolate.
1.2 High-degree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost.
2.Chocolate Processing Flow Chart:

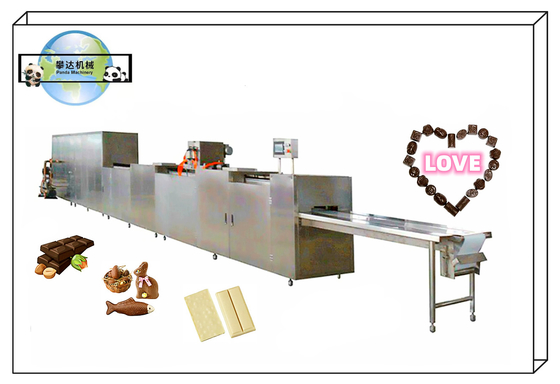

3.Chocolate Depositing Production Line:
4.Technical Parameters:
Model |
PD150 (One Head) |
PD150 (Two Heads) |
PD510 ( One Head) |
PD510 (Two Heads) |
Output (Molds Pcs/Min) |
6-15 | 6-15 | 6-15 | 6-15 |
Molds Number (Pcs) |
280 | 330 | 280 | 300 |
Molds Size(MM) | 330*200*30 | 330*200*30 | 510*200*30 | 510*200*30 |
Dimension(M) | 16*1*1.6 | 16*1*1.6 | 16*2*1.6 | 16*2*1.6 |
Total Power(KW) | 19 | 23 | 21 | 25 |
Total Weight(KG) | 3500 | 4500 | 4000 | 5000 |
6.Relative Machines Functions:
6.1 Sugar Grinding Machine: Grinding sugar to sugar powder

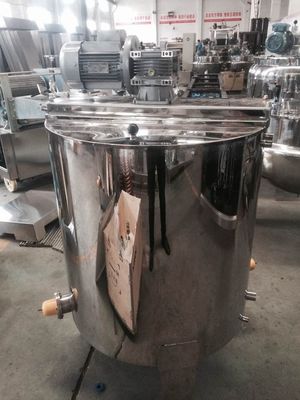

6.2 Cacao Butter Melting Tank: Jacket layers inside warm water, electric or steam heating, melting cacao butter for 30-60 minutes, temperature is around 55-60 degrees.
6.3 Conche: Adding grinded sugar powder, cacao powder, lecithin and cacao syrup and so on into the conche for grinding 14 hours.
6.4 Storage Tank: Stirring the conched syrup for 3-4 hours until the bubbles disappear.
6.5 Depositing and Cooling: Depositing the chocolate syrup into the molds and cooling(8 layers), warming molds, vibrating, and demoulding machine equipped, PLC control.
6.6 Packing Machine: Various packing machine available.
7.Main Chocolate Machines Fabrication Photos:
Chocolate Conch
Chocolate Depositor
Chocolate Cooling Tunnel
Chocolate Packing Machine
8.Chocolate and Moulds Samples:
