Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: PANDA MACHINERY
Certification: CE, ISO
Model Number: PD600/800

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard exporting wooden boxes
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Product: Chocolate Making Machine Type: Coating Machine
Model: PD600 Tunnel Length: 14M
Machine Power: 16.5KW Weight: 6000KG
Outline Size: 17500x1600x2400MM
High Light:

automatic chocolate moulding machine

,

chocolate factory equipment

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment



1.Brief Introduction:

1.1 Chocolate Bar Production Line, confirms to the food GMP standard, is an advanced equipment for producing various shapes chocolate.

1.2 High-degree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost.



2.Chocolate Processing Flow Chart:

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 0

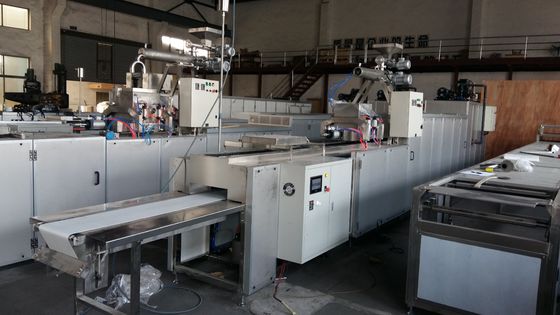

3.Chocolate Depositing Production Line:

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 1

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 2

4.Technical Parameters:

Model

PD150

(One Head)

PD150

(Two Heads)

PD510

( One Head)

PD510

(Two Heads)

Output

(Molds Pcs/Min)

6-15 6-15 6-15 6-15
Molds Number (Pcs) 280 330 280 300
Molds Size(MM) 330*200*30 330*200*30 510*200*30 510*200*30
Dimension(M) 16*1*1.6 16*1*1.6 16*2*1.6 16*2*1.6
Total Power(KW) 19 23 21 25
Total Weight(KG) 3500 4500 4000 5000

5.Main Components Of Chocolate Processing Line:
Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 3

6.Relative Machines Functions:

6.1 Sugar Grinding Machine: Grinding sugar to sugar powder
6.2 Cacao Butter Melting Tank: Jacket layers inside warm water, electric or steam heating, melting cacao butter for 30-60 minutes, temperature is around 55-60 degrees.
6.3 Conche: Adding grinded sugar powder, cacao powder, lecithin and cacao syrup and so on into the conche for grinding 14 hours.
6.4 Storage Tank: Stirring the conched syrup for 3-4 hours until the bubbles disappear.
6.5 Depositing and Cooling: Depositing the chocolate syrup into the molds and cooling(8 layers), warming molds, vibrating, and demoulding machine equipped, PLC control.
6.6 Packing Machine: Various packing machine available.

7.Main Chocolate Machines Fabrication Photos:

Sugar Grinding Machine

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 4

Chocolate Storage Tank

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 5

Chocolate Conch

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 6



Small Chocolate Depositor

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 7

Chocolate Tempering Machine

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 8

Chocolate Depositing Machine

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 9

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 10

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 11

Chocolate Cooling Tunnel

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 12

Chocolate Packing Machine

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 13

8.Chocolate and Moulds Samples:

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 14

Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment 15
