Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: PANDA MACHINERY
Certification: CE, ISO
Model Number: PD300

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Exporting Wooden Boxes
Delivery Time: 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets Per Month
Detailed Product Description
Product: Chocolate Machine Type: Double Head Chocolate Production Line Pouring Machine
Capacity: 100KG/H-500KG/H Speed: 8-15Moulds/Min
Voltage: 380V/50Hz/3PHs Power: 32.5KW
Weight: 11500KG Size: 19000 X 1100 X 1800MM
High Light:

automatic chocolate moulding machine

,

chocolate manufacturing equipment

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine Chocolate Processing Equipment



1.Brief Introduction:

1.1 Chocolate Bar Production Line, confirms to the food GMP standard, is an advanced equipment for producing various shapes chocolate.

1.2 High-degree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost.

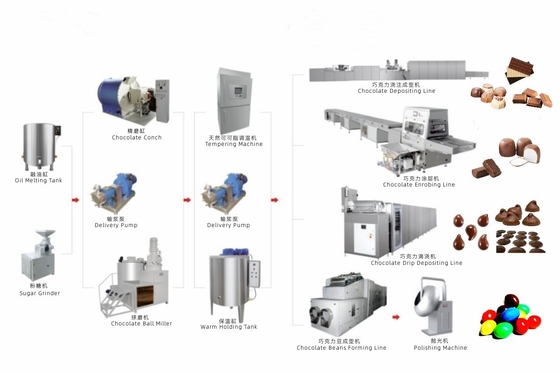

2.Chocolate Processing Flow Chart:

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 0

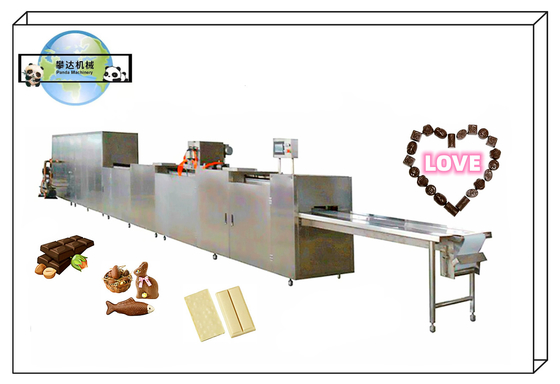

3.Chocolate Depositing Production Line:

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 1

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 2

4.Technical Parameters:

Model

PD150

(One Head)

PD150

(Two Heads)

PD510

( One Head)

PD510

(Two Heads)

Output

(Molds Pcs/Min)

6-15 6-15 6-15 6-15
Molds Number (Pcs) 280 330 280 300
Molds Size(MM) 330*200*30 330*200*30 510*200*30 510*200*30
Dimension(M) 16*1*1.6 16*1*1.6 16*2*1.6 16*2*1.6
Total Power(KW) 19 23 21 25
Total Weight(KG) 3500 4500 4000 5000

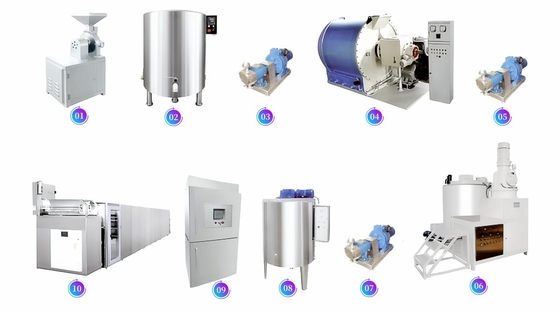

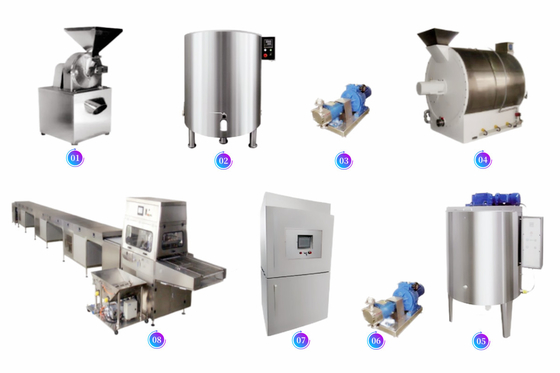

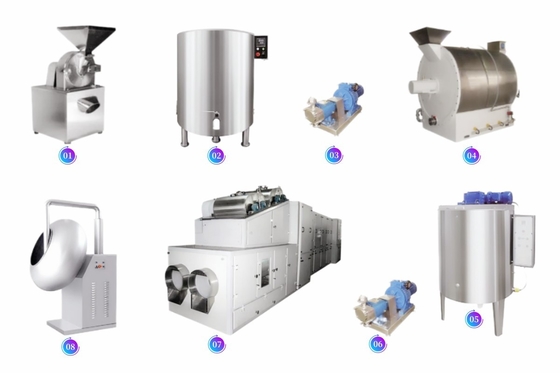

5.Main Components Of Chocolate Processing Line:
Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 3

6.Relative Machines Functions:

6.1 Sugar Grinding Machine: Grinding sugar to sugar powder
6.2 Cacao Butter Melting Tank: Jacket layers inside warm water, electric or steam heating, melting cacao butter for 30-60 minutes, temperature is around 55-60 degrees.
6.3 Conche: Adding grinded sugar powder, cacao powder, lecithin and cacao syrup and so on into the conche for grinding 14 hours.
6.4 Storage Tank: Stirring the conched syrup for 3-4 hours until the bubbles disappear.
6.5 Depositing and Cooling: Depositing the chocolate syrup into the molds and cooling(8 layers), warming molds, vibrating, and demoulding machine equipped, PLC control.
6.6 Packing Machine: Various packing machine available.

7.Main Chocolate Machines Fabrication Photos:

Sugar Grinding Machine

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 4

Chocolate Storage Tank

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 5

Chocolate Conch

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 6



Small Chocolate Depositor

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 7

Chocolate Tempering Machine

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 8

Chocolate Depositing Machine

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 9

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 10

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 11

Chocolate Cooling Tunnel

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 12

Chocolate Packing Machine

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 13

8.Chocolate and Moulds Samples:

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 14

Chocolate Warm Holding Tank For Chocolate Bar Production Line Chocolate Bar Making Machines Chocolate Depositing Machine 15

9.Contact Information:

Mob,Wechat,Whatsapp:+8613795369808 +8617162115888 Mr.Paul Wang Email: paul@pandamachinerysh.com

Mob/Wechat/Whatsapp:+8613127731236 Ms.Isabel Lee Email: isabel@pandamachinerysh.com

Websites:www.biscuitprocessingline.com www.pandamachinerycn.com www.pandamachinerysh.com
