Product Details:
Payment & Shipping Terms:
|
| Product: | Chocolate Bean Production Line | Model: | PD400/PD600 |
|---|---|---|---|
| Capacity: | 70-150KG/H/200-250KG/H | Total Power: | 35KW / 45KW |
| Machine Size: | 7800x1600x1800MM / 10400x1300x2350MM | Machine Weight: | 4500/7500KG |
| High Light: | automatic chocolate moulding machine,chocolate factory equipment |
||

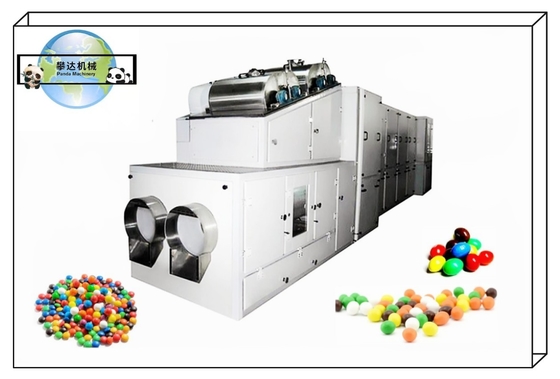

Chocolate Bean Production Line Machine Chocolate Bean Processing Line Machinery Chocolate Bean Making Equipment Line
1.Brief Introduction:
1.1 This chocolate bean production line machine is used for producing chocolate and its outside always coated a layer of sugar or colorant.
1.2 The machine can produce chocolate beans of various shapes, such as: lentil shapes, ball shapes, coffee bean shape, almond shapes.
1.3 In addition, it can produce special shapes of chocolate granules to meet different customer's requirements.
1.4 The working principle and normal running of the machine rely on the two rollers.
1.5 The special design inside the rollers and the low temperature produced by the flow of cooling liquids enable the roller surface to send the optimal temperature and ensure the best chocolate beans are produced.
2.Technical Parameters:
| Model | PD400 | PD600 |
| Effective Roller Width | 400MM | 600MM |
| Roller Dia. | 318MM | 318MM |
| Output | 70-100KG/H | 100-300KG/H |
| Refrigerator Power | 8.0KW | 15.0KW |
| Machine Power | 1.5KW | 2.2KW |
| Heat Insulation Tank Power | 6.25KW | 6.25KW |
| Total Power | 15.75KW | 23.45KW |
| Optimal Forming Temperature | -22 ~ -24 Deg C | -22 ~ -24 Deg C |
| Min. Cooling Temperature | -28 ~ -30 Deg C | -28 ~ -30 Deg C |
| Machine Weight | 4500KG | 7500KG |
| Machine Size | 7800 x 1600 x 1800MM | 10400 x 1300 x 2350MM |
3.Components Machine of Chocolate Beans Production Line:
4.Chocolate Beans Machine In Factory:
Sugar Grinding Machine
Fat/Oil Melting Tank
Chocolate Conch
Small Chocolate Enrobing Machine
Chocolate Tempering Machine
Chocolate Bean Forming and Cooling Machine
5.Chocolate Beans Samples:
