Product Details:
Payment & Shipping Terms:
|
| Product: | Chocolate Bean Machine | Model: | PD400/PD600 |
|---|---|---|---|
| Material: | SS304 | Effective Roller Width: | 400MM/600MM |
| Roller Dia.: | 318MM | Capacity: | 80-150KG/H /150-250KG/H |
| High Light: | automatic chocolate moulding machine,chocolate manufacturing equipment |
||

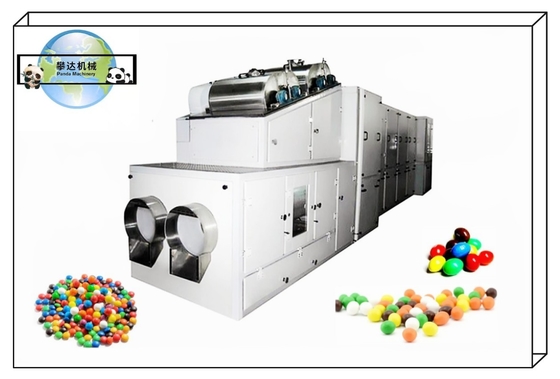

Chocolate Beans Processing Line Equipment, Automatic Chocolate Beans Moulding Machine 400MM/600MM Forming Roller
1.Brief Introduction:
1.1 This chocolate bean production line machine is used for producing chocolate and its outside always coated a layer of sugar or colorant.
1.2 The machine can produce chocolate beans of various shapes, such as: lentil shapes, ball shapes, coffee bean shape, almond shapes.
1.3 In addition, it can produce special shapes of chocolate granules to meet different customer's requirements.
1.4 The working principle and normal running of the machine rely on the two rollers.
1.5 The special design inside the rollers and the low temperature produced by the flow of cooling liquids enable the roller surface to send the optimal temperature and ensure the best chocolate beans are produced.
1.6 The chocolate bean production line is the equipment our companies fetch in the foreign technique to research and manufacture
1.7 this line with a whole closing, avoiding the lower food hygiene standard of more contacting of personnel, attaining the food hygiene standard.
1.8 It is affected small by the environment temperature and humidity
1.9. It is the perfect line of many chocolate factories.
1.10. The excellence of this line is lower power, large capacity, good tasting, high safely, convenience operation and high automatic.
1.10 Technical Specifications of Chocolate Beans Forming Machine:
1.10.1 The width of belt: 600MM；
1.10.2.The speed of belt: 1~6M/MIN；
1.10.3.Refrigerating machines: 3Sets；
1.10.4.Length of cooling tunnel: 8M；
1.10.5.Tunnel temperature: 2~10℃；
1.10.6.Total power: 16.5kw;
2.Technical Parameters:
| Model | PD400 | PD600 |
| Effective Roller Width | 400MM | 600MM |
| Roller Dia. | 318MM | 318MM |
| Output | 70-100KG/H | 100-300KG/H |
| Refrigerator Power | 8.0KW | 15.0KW |
| Machine Power | 1.5KW | 2.2KW |
| Heat Insulation Tank Power | 6.25KW | 6.25KW |
| Total Power | 15.75KW | 23.45KW |
| Optimal Forming Temperature | -22 ~ -24 Deg C | -22 ~ -24 Deg C |
| Min. Cooling Temperature | -28 ~ -30 Deg C | -28 ~ -30 Deg C |
| Machine Weight | 4500KG | 7500KG |
| Machine Size | 7800 x 1600 x 1800MM | 10400 x 1300 x 2350MM |
3.Components Machine of Chocolate Beans Production Line:
4.Chocolate Beans Machine In Factory:
Sugar Grinding Machine
Fat/Oil Melting Tank
Chocolate Conch
Small Chocolate Enrobing Machine
Chocolate Tempering Machine
Chocolate Bean Forming and Cooling Machine
5.Chocolate Beans Samples:
