Product Details:
Payment & Shipping Terms:
|
| Product: | Chocolate Machine | Type: | Coating Machine |
|---|---|---|---|
| Model: | YX-600 | Tunnel Length: | 14m |
| Machine Power: | 16.5kw | Weight: | 2300kg |
| Outline Size: | 17500 X 950 X 1800 Mm | ||
| High Light: | automatic chocolate moulding machine,chocolate factory equipment |
||
1 Description and Parameters
Chocolate making process
Sugar grinding--Cocoa butter melting-- Conche --Storage tank --Depositing and cooling --Packing
Tips on the chocolate bar production line:
1) The whole line equipped the international motor: ABB motor, Danfoss invertor, Mitsubishi PLC control, Servo motor, SS materials
2) Heating by steam or electric
3) standard chcolate and chocolate bar can be made
4) One/ two colors/center fillied chocolate can be made
The functions of each machine.
1) Sugar grinding machine: Grinding sugar to sugar powder
2) Cocoa butter melting tank: jacket layers inside warm water, electric or steam heating, melting cocoa butter for 30-60 minutes, temperature is around 55-60 degrees
3) Conche:adding grinded sugar powder, coco powder, lecithin and cocoa syrup and so on into the conche for grinding 14 hours
4) Storage tank: Stirring the conched syrup for 3-4 hours until the bubbles disappear
5)Deposting and Cooling: depositing the chocolate syrup into the moulds and cooling(8 layers), warming moulds ,vibrating,and demoulding machine equipped . PLC control
6) Packing machine: various packing machine available.
Technical Parameters
| Model | YX-175(one head) | YX175( two heads) | YX-510( one head) | YX510(two heads) |
| Output(moulds pcs/min) | 6-15 | 6-15 | 6-15 | 6-15 |
| Moulds Mumber(pcs) | 280 | 330 | 280 | 300 |
| Moulds Size(mm) | 330*200*30 | 330*200*30 | 510*200*30 | 510*200*30 |
| Dimension:(mm) | 16000*1000*1600 | 16000*1000*1600 | 16000*2000*1600 | 16000*2000*1600 |
| Total Power(kw) | 19 | 23 | 21 | 25 |
| Total Weight(kg) | 3500 | 4500 | 4000 | 5000 |

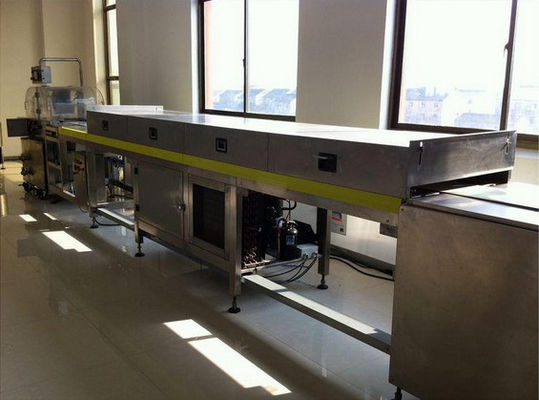

2 Photos
