Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines

Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines
Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines

Large Image :  Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: PANDA MACHINERY
Certification: CE, ISO
Model Number: 150Kg/H-1200Kg/H

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Exporting Wooden Boxes
Delivery Time: 30 Work Days
Payment Terms: T/T
Supply Ability: 50 Sets Per Month
Detailed Product Description
Product Name: Candy Production Line Capacity: 150/300/450/600
Depositing Times: 30-45n/min Power: 18kw/12kw/15kw/25kw
Length: 18m/20m/22m/25m Pressure: 0.2-0.8mpa

Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines

Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 0

1.Brief Introduction:

1.1 Panda Machinery Serires Hard Candy Production Lines is an advanced equipment for producing various shapes and colors of hard candy.

1.2 It is an ideal equipment for continuous production of high quality single and double color hard candy.

1.3 High-degree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost

1.4 Machine Capacity: Small Capacity:150KG/H, Medium Capacity:300-450KG/H, Large Capacity:600KG/H

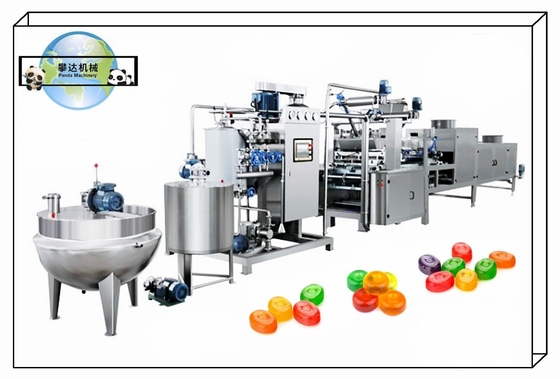

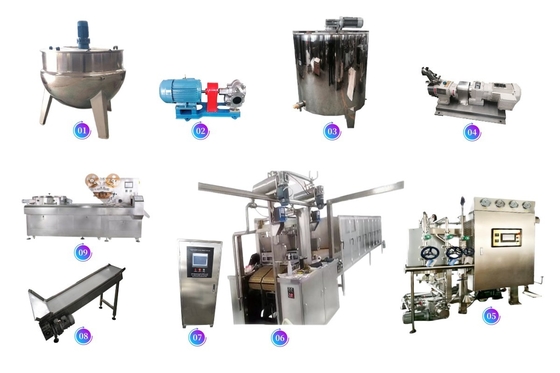

2.Hard Candy Production Process:

Sugar Melting--Storage Tank--Micro-Film Cooker--Depositing and Cooling--Packing

Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 1

3.The Functions of Each Machine:

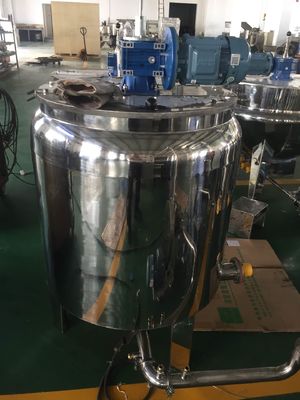

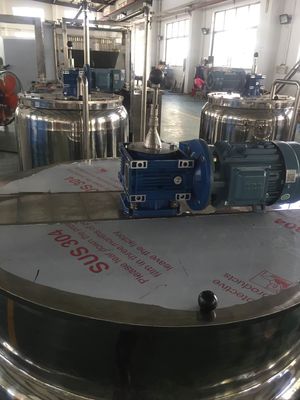

3.1 Sugar melting tank: heating sugar, glocose, water to 110 degrees.

3.2 Storage tank: storage the sugar syrup and and filting pure syrup.

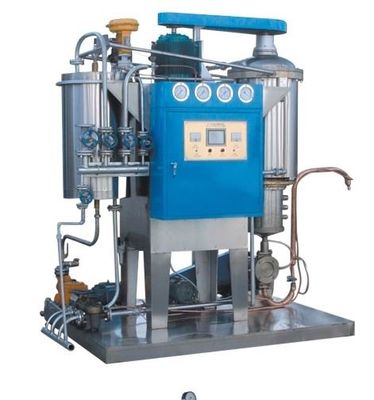

3.3 Micro-film cooker: cooker the syrup again to 145 degrees for better taste, moisture is lower then 2%, suits for international standard.

3.4 Deposting and Cooling: depositing the sugar syrup into different candy mouds

3.5 Packing machine: various packing machine available.



4.Technical Parameters:

Model PD150 PD300 PD450 PD600
Standard Output 150KG/H 300KG/H 450KG/H 600KG/H
Max.Candy Weight 21 Grams/Pcs
Depositing Speed 45-55N/Min 45-55N/Min 45-55N/Min 45-55N/Min
Steam Requirement 500KG/H,
0.4-1MPa
800KG/H,
0.4-1MPa
1000KG/H,
0.4-1
MPa
1500KG/H
0.4-1MPa
Working Requirement Room Temperature: 20~25℃ Humidity: 55%
Total Power 18KW/380V 27KW/380V 34KW/380V 38KW/380V
Total Length 18M 20M 20M 22M
Total Weight 5500KG 6500KG 8000KG 10000KG



5.Hard Candy Processing Flow Chart:



Professional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kw

Professional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kw



6.The Features of Hard Candy Production Line:

6.1 The whole line equipped the international motor: ABB motor, Danfoss invertor, Mitsubishi PLC control, servo motor, SS materials

6.2 Heating by steam or electric

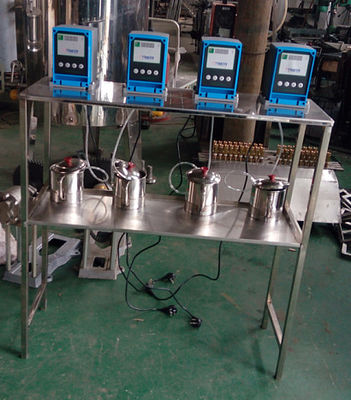

6.3 Essence and pigment pump installed with the machine.

6.4 Various shapes hard candy can be produced by changing moulds

6.5 Candy size and weight effects the final output

6.6 One/ two colors/center fillied hard candy can be made

6.7 260 pieces candy moulds for the 150 type, 520 pieces for the 300 type

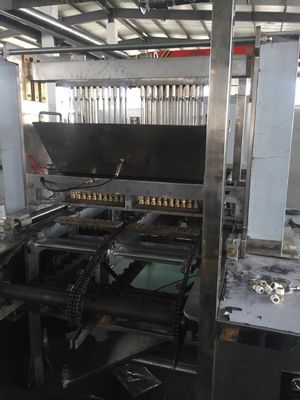

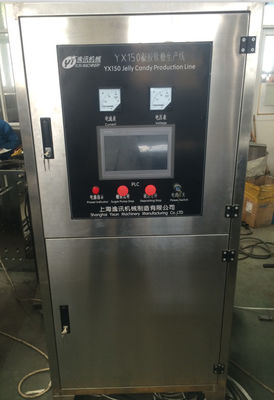

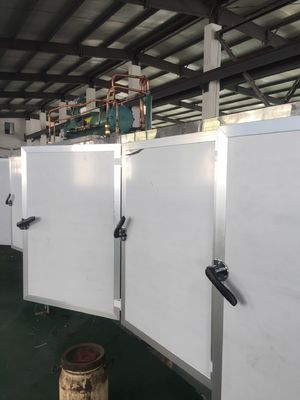

7.Machine Production Process Photos:

Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 4Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 5Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 6



8.Hard Candy Samples:

Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 7Servo Driving PLC Control Hard Candy Production Line Machines Industry Candy Making Lines 8
Professional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kw



Professional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kwProfessional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kwProfessional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kwProfessional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kwProfessional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kwProfessional Hard candy production line 150kg / 300kg per hour Hard Candy Making Equipment / Machine Automatic 15 - 50kw



9.Certification:

Cup cake production line muffin making processing machines cupcake forming machine cake cookies making machine

10.Contact Information:

Mob,Wechat,Whatsapp:+8613795369808 +8617162115888 Mr.Paul Wang Email: paul@pandamachinerysh.com

Mob/Wechat/Whatsapp:+8613127731236 Ms.Isabel Lee Email: isabel@pandamachinerysh.com

Websites:www.biscuitprocessingline.com www.pandamachinerycn.com www.pandamachinerysh.com
