Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery
Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery

Large Image :  Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: PANDA MACHINERY
Certification: CE, ISO
Model Number: PD600-1600

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Exporting Wooden Boxes
Delivery Time: 40 Work Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Detailed Product Description
PRODUCT NAME: MARSHMALLOW PRODUCTION LINE OUTPUT: 100-500KG/H
POWER: 35-150KW/380V PRODUCTION LINE TOTAL LENGTH: 25-35M
GROSS WEIGHT: 8000-20000KG AIR PRESSURE: 0.6-0.8MPa
High Light:

marshmallow plant

,

marshmallow making machine

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery



1.Brief Description:

1.1 Marshmallow machine line is advanced equipment which can continuously produce various kinds of marshmallow under a strict sanitary condition.

1.2 This line can automatically produce high-quality different shape marshmallow.

1.3 A popular product, manufactured in a vast variety of shapes, sizes and colors, single rope form, multi-strand, co-extruded, twisted, the list is almost endless, sugar, glucose and water are boiled to a fix concentration, cooled and blended with a whipping agent.

1.4 Following this, the base syrup solution is aerated and extruded onto the PANDA finishing line where the final product is conditioned and cut into a predetermined size prior to packaging.

1.5 Prior to the extrusion, the aerated mallow can be diverted into a number of streams and individually colored thus creating multi-colored ropes.

1.6 The PANDA extruded marshmallow line can be adapted to produce traditionally starched product as well as product enrobed in chocolate or compound coating.

1.6 Though the basic ingredients are mixed in a different ratio, the basic process for deposited marshmallow is similar to the extrude marshmallow. The difference lies in the manifold and finishing line.

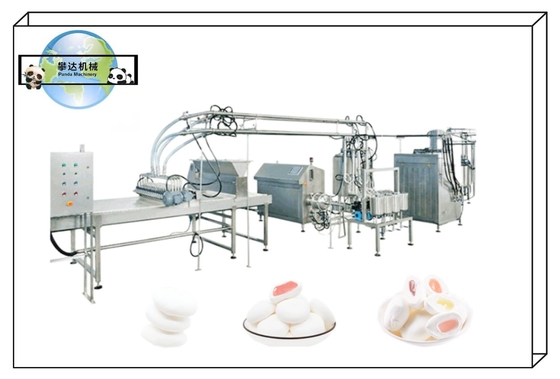

2.Reference Photo of Depositing Marshmallow Production Line:

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery 0

3.Deposited Marshmallow Samples:

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery 1

4. Feature of Marshmallow Depositing Production Line:

4.1 In the pre-mixer, all the ingredients to be dissolved and cooked.

4.2 Then the basic slurry is continuously pumped to a cooker till the final moisture level is reached.

4.3 After cooking, the slurry will be cooled and mixed with a separate whipping agent solution.

4.4 Then the cooled “marshmallow base” is passed through the continuous aerator.

4.5 The product then be divided and injection with different colors and flavors.

4.6 The multi-color product is deposited,and transported on a cooling conveyor for cooling down;

4.7 The conditioned marshmallows are dusted top and bottom with starch, or a mixture of both starch and icing sugar in a separate dust cabin; the product is cut to the required length here.

4.8 The dust cabin is kept under a strict control to prevent the “dust” spreading throughout the plant. The excess starch/sugar is removed.



5.Marshmallow Production Procedures:

Ingredients weighing and dissolvingà Cooking à Coolingà Mixingà Continuous Aeratingà Cooling,

Storage and Warm-keeping,mixingà Air-Film Pump Transporting

Add flavor and color

à Force transportingà Automatic starch feedingà Rotation extrudingà Starch Coveringà Cooling and conveyingà Cuttingà De-Starchingà Putting in the traysà

Blends Icing Sugar Spraying

Drying à Separating and de-starchingà Conveyingà Starch Cleaning(With de-dust)

àForming and Conveying à Final Productsà Packaging



6.Technical Parameters:

Model PD600-PD800-PD1000-PD1600
Output 100-250-350-500KG/H
Weight Per Piece 3-10Grams/Pcs
Product Diameter 20-50MM
Steam Consumption 250-800KG/H
Steam Pressure 0.2-0.6MPa
Power Consumption 30-100KW/380V
Compressed Air Consumption 1.5-2CBM/H
Compressed Air Pressure 0.6-0.8MPa
Indoor Temperature 20-25℃
Indoor Humidity 45-55%
Gross Weight 5000-10000KG
Line Length 25-35M



7.Marshmallow Production Process Flow Chart:

Automatic Marshmallow Extruding Production Line Making Machine Extruded Marshmallow Processing Line Equipment Machinery 8

8.Sketch Layout of Marshmallow Production Line:

Automatic Marshmallow Extruding Production Line Making Machine Extruded Marshmallow Processing Line Equipment Machinery 9

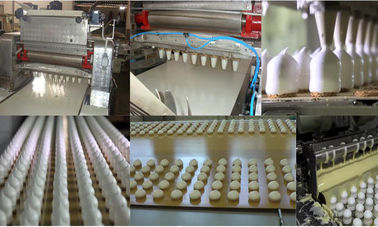

9.Machine Factory Fabrication Process:

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery 4

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery 5

Automatic Marshmallow Depositing Production Line Machine Marshmallow Depositing Processing Line Equipment Machinery 6

10.Contact Information:

Mob,Wechat,Whatsapp:+8613795369808 +8617162115888 Mr.Paul Wang Email: paul@pandamachinerysh.com

Mob/Wechat/Whatsapp:+8613127731236 Ms.Isabel Lee Email: isabel@pandamachinerysh.com

Websites:www.biscuitprocessingline.com www.pandamachinerycn.com www.pandamachinerysh.com
