PD300 Professional Hard Candy Lollipop Production Line Hard Candy Lollipop Processing Line Hard Candy Lollipop Making Line Machine Equipment Machine

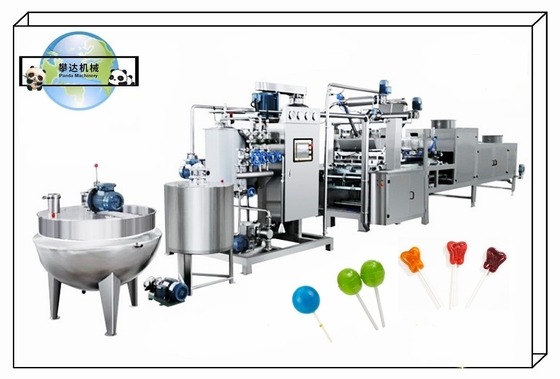

1.Reference Photo For Hard Candy Lollipop Production Line:
2.Brief Introduction:
Panda Hard Lollipop Candy Production Line is an advanced equipment for producing various shapes and colors of hard candy. ideal equipment for continuous production of high quality single and double color hard candy.
High-degree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost
3.Hard Candy Lollipop Production Process:
Sugar Melting--Storage Tank-- Micro-Film Cooker--Depositing--Stick Inserting and Cooling--Packing
4.The Functions of Each Machine:
4.1 Sugar melting tank: heating sugar, glocose, water to 110 degrees.
4.2 Storage tank: storage the sugar syrup and and filting pure syrup.
4.3 Micro-film cooker: cooker the syrup again to 145 degrees for better taste, moisture is lower then 2%, suits for international standard.
4.4 Deposting and Cooling: depositing the sugar syrup into different candy mouds
4.5 Packing machine: various packing machine available.
5.Tips On The Hard Candy Lollipop Production Line:
5.1 The whole line equipped the international motor: ABB motor, Danfoss invertor, Mitsubishi PLC control, servo motor, SS materials
5.2 Heating by steam or electric
5.3 Essence and pigment pump installed with the machine.
5.4 Various shapes hard candy can be produced by changing moulds
5.5 Candy size and weight effects the final output
5.6 One/ two colors/center fillied hard candy can be made
5.7 260 pieces candy moulds for the 150 type, 520 pieces for the 300 type
6.Technical Parameters:
Model | PD150 | PD300 | PD450 | PD600 |
Standard Output | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
Max.Candy Weight | over 4 gram | |||
Depositing Speed | 40-45/min | 40-45/min | 40-45/min | 40-45/min |
Steam Requirement | 0.2m³/min, 0.4-0.6Mpa |
0.2m³/min, 0.4-0.6Mpa |
0.2m³/min, 0.4-0.6Mpa |
0.2m³/min ,0.4-0.6Mpa |
Working Requirement | Room Temperature: 20~25℃ Humidity: 55% | |||
Total Power | 18kw/380V | 27kw/380V | 34kw/380V | 38kw/380V |
Total Length | 15m | 17m | 17m | 20m |
Total Weight | 3500kg | 4000kg | 4500kg | 5000kg |
7.Hard Candy Lollipop Machine Photos:
8.Hard Candy and Lollipop Samples:
