Product Details:
Payment & Shipping Terms:
|
| Equipment: | Gummy Bear Packaging Machine | Material: | 304 Stainless Steel |
|---|---|---|---|
| Suitable: | Gummy, Chocolate Bean, Candy Weighing Packing Etc | Factory Place: | SHANGHAI, CHINA |
| High Light: | gummy manufacturing equipment,gummy bear packaging machine |
||

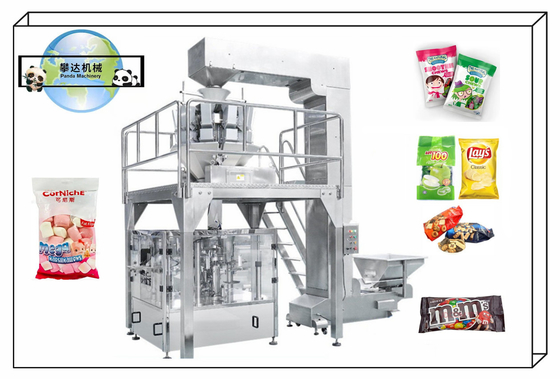

PD200 Weighing Packing Machine For Snack Food Popcorn Chocolate Bean Candy Fruit Jelly Gummy Nuts
1.The Componets of The Machine:
1.1 Vibrating Feeder
1.2 Z shape Materials Conveyor
1.3 Combined Scales (10-head scale, 12-head scale,14-head scale)
1.4 Supporting Platform
1.5 Main Machine (The Packing Part)
1.6 Finished Product Conveyor
2.Main Features:
2.1 Adopt color touch screen and stable and biaxial high precision PLC control to complete bag making, weighing, filling, sealing, code printing and bags cutting automatically.
2.2 Independent compressed air control and electrical wire system control, low running noise, stable performance.
2.3 Vacuum belt pulling system to feed film and make bags good looking and the belt is not easy to wear and tear.
2.4 Double servo control system, precise positioning.
2.5 It is easy to place the rewind roller on the machine.
2.6 Bag size could be adjusted on the touch screen only.
2.7 Sealed structure design helps to prevent dust go inside the machine.
2.8 Multi computerized weighing heads delivers precise weight and make the production cost lower.
2.9 It is used for packing products in shapes of granules,stripes,slices such as candy, potato chips, jelly, peanuts and so on.
3.Technical Parameters:
| Model | PD420 | PD520 | PD680 |
| Bag Length | 80~300mm(L) | 80~400mm(L) | 100~480mm(L) |
| Bag Width | 50~200mm(W) | 80~250mm(W) | 180~320mm(W) |
| Film Width | Max.420mm | Max520mm | Max.680mm |
| Packing Speed | 5~60 packs/min | 5~50 packs/min | 5~50packs/min |
| Volume Range | 150~1200ML | Max.3000ML | Max.6000ML |
| Air Pressure | 0.65Mpa | ||
| Air Consumption | 0.3m³/min | 0.4m³/min | 0.4m³/min |
| Voltage | 220V/380V 50HZ/60HZ | ||
| Power | 2.2kw | 4.0kw | 5.0kw |
| Dimension | 1320×950×1360mm | 1150×1795×1650mm | 1780×1350×1950mm |
| Weight | 540kg | 600kg | 900kg |
4.Packing Sample:
5.Contact Information:
Mob,Wechat,Whatsapp:+8613795369808 +8617162115888 Mr.Paul Wang Email: paul@pandamachinerysh.com
Mob/Wechat/Whatsapp:+8613127731236 Ms.Isabel Lee Email: isabel@pandamachinerysh.com
Websites:www.biscuitprocessingline.com www.pandamachinerycn.com www.pandamachinerysh.com
