Product Details:
Payment & Shipping Terms:
|
| Product Name: | Energy Bar Making Machine | Air Press: | V=0.6M³ ,0.7MPa |
|---|---|---|---|
| Steam Press: | 0.5-0.8MPa | Steam Need: | 500KG/H |
| Water Need: | 800KG/H | Power: | 120-200KW |
| High Light: | cereal bar forming machine,protein bar making machine |
||
Candy Bar Snicker Bar Production Line Machine,Energy Bar Snicker Making Line Machine, Protein Candy Bar Making Equipment
1.Brief Introduction:
1.1 PD Snicker bar production line is the complete full automatic multifunctional candy bar/nougat/cereal bar/fruit bar/nutritional bar production line based on more than 30 years experience and advanced technology.
1.2 PD Snicker bar production line is mainly used for producing different kind of bars with or without chocolate coating. This is the consists of four main sections: cooling and mixing unit, bar forming unit( including sheeting forming/ caramel depositing/ nuts mixing/ cooling/sitting and guillotine). automatic chocolate enrobing and cooling unit. automatic conveying and flow packing unit
2.Reference Photo of Candy Bar Production Line:
3.Technical Parameters:
| Item | PD600/PD800 | Electronic Part | Siemens |
| Production Capacity | 400/800KG/H | PLC | Taiwan |
| Electric Power Needed | 121KW/200KW/380V/50Hz | Frequency Investor | Taiwan |
| Water Needed | 800KG/H | Touch Screen | Taiwan |
| Steam Needed | 100KG/H | Chiller | Danfoss |
| Steam Pressure | 05-0.8MPa | Cylinder | China |
| Air Pressure | V=0.6M³ ,0.7MPa | Motor & Reducer | China |

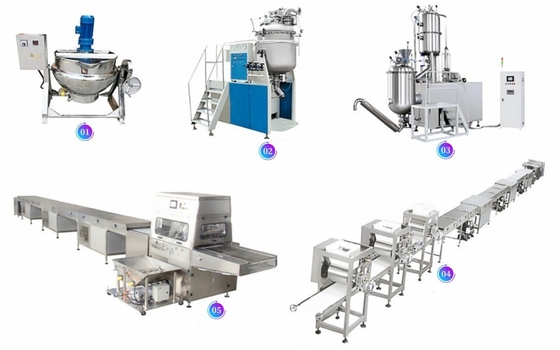

4.Main Equipment of Snicker Candy Bar Production Line:
5.Candy Bar Production Process Flow Chart:
6.Candy Bar Samples:
