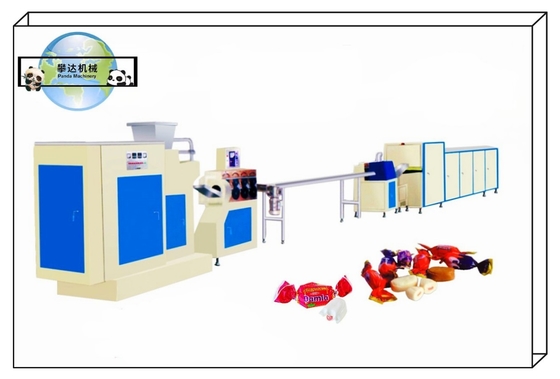

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment
PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment

Large Image :  PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: PANDA MACHINERY
Certification: CE, ISO
Model Number: PD300

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Exporting Wooden Boxes
Delivery Time: 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Milk Candy Production Line Capacity: 300KG/H
Depositing Times: 45-55N/Min Power: 25KW/380V/50Hz/3Phs
Length: 20M Steam Pressure: 0.5-0.8MPa
High Light:

hard candy production line

,

candy forming machine

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment 0

1.Brief Introduction:
1.1 Milk Candy Production Line, a newly-born equipment based on the foreign advanced technology, which is the ideal equipment for production of cylindrical milk candy.
1.2 Milk Candy Production Line consists of heat preservation batch roller, rope sizer, conveyor, tank cooling machine, twisting and cutting forming machine and so on.
1.3 Milk Candy Production Line is especially suitable for mass production of gum-type milk candy with uniform shape and smooth surface.

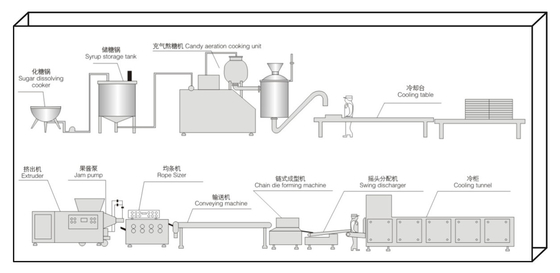

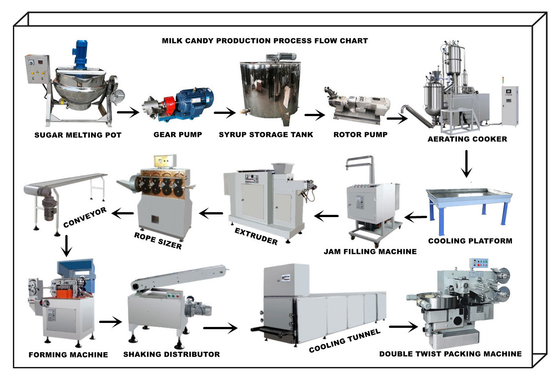

2.Milk Candy Production Flow Chart:

>>Melting Sugar--Storage--Cooking/Aeration--Cooling--Extruding and Jam Filling --Rope Sizer--Conveyor--Chain Forming --Swing Discharge--Cooling Tunnel--Packing

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment 1

3.Component Machines and Main Usage(Standard):

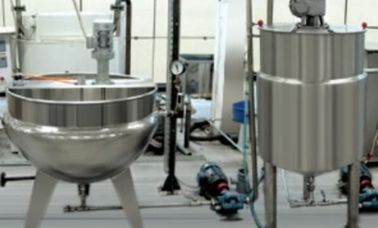

3.1 Sugar Melting Pot: For melting sugar material and keeping temperature.
3.2 Syrup Storage Tank: For Storing syrup and Filtering pure syrup .
3.3 Continuous Cooking Machine: For heating,concentration, air-inflation, agitation and evenly-blend.
3.4 Cooling: For cooling candy
3.5 Extruder: For Squeezing out raw material
3.6 Jam Pump: For measuring jam and centering--filling to the candy
3.7 Rope Sizer: To let it be uniform .
3.8 Chained Forming Machine: Forming candy in chain style.
3.9 Swing Discharger: Distributing candies into piece by piece.

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment 2

4.Other Features:

4.1 PLC controller

4.2 Motor: ABB brand.
4.3 Material: Stainless Steel
4.4 Heating Type: Steam or electricity

4.5 Candy Type: Milk candy

4.6 Output Capacity:250-300KG/H



5.Technical Parameters:

MODEL PD300
CAPACITY 300KG/H
POWER 15KW/380V
LENGTH 16M
WEIGHT 6G



6.Milk Candy Samples:

PD300 Chain Forming Milk Candy Propduction Line Machinery, Die Formed Milk Candy Production Line Equipment 3
